HS-3200 HD 12-Channel HD Portable Video Streaming Studio

Video Standard

Full HD

Video Format

1080p 50/59.94/60Hz
1080i 50/59.94/60Hz
720p 50/59.94/60Hz

Input Routable / Crosspoint

All 12
repeatable

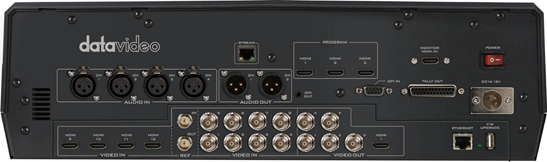

Video Input

8x SDI

4x HDMI

Computer Graphic Interface

4 via HDMI

Down-converted Output

1x SDI

Video Output

5x SDI, 1x HDMI assignable:
Multiview, PGM, PVW, PGM+DSK, Clean PGM, Clean PVW, Input 1-12, STILL 1, STILL 2, Flex source 3x HDMI PGM only

Analogue Audio Input

4x Balanced XLR

Analogue Audio Output

2x Balanced XLR

Digital Embedded Audio Support Input

2 channels


Digital Embedded Audio Support Output

4 channels

Audio Delay Calibration

Up to 16 frames

A+V Switching

Yes

USK

4

DSK

2, support Lumakey & Linear key (Key / Fill)

Picture in Picture

8 (4x Keyer, 4x Flex Source)

Logo Insertion

2

Title Creator

Yes, CG-200 software free download

Built-in Audio Mixer

N/A

Built-in Monitor Display

17.3” HD TFT LED backlit, 1920x1080 pix

Built-in Intercom & Tally

N/A

Streaming Video Encode

H.264 / AVC, Main/ High Profile
Configurable Bit-rate up to 10Mbps

Streaming Audio Encode

AAC-LC
Configurable bit rate range from 32Kbps to 384Kbps
Sample rate: 48KHz, 16bit

Streaming Protocol

TS over TCP/UDP (unicast & multicast)
RTSP over HTTP/TCP/UDP
RTMP/RTMPS (Publish)

Streaming Control

Web browser UI for configuration and control Socket commands

Recording File System

MP4

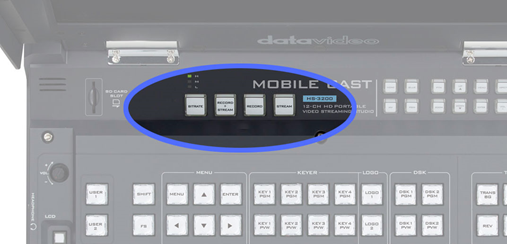

Streaming & Recording Setting Control

Web UI for system configuration and control

Special Features

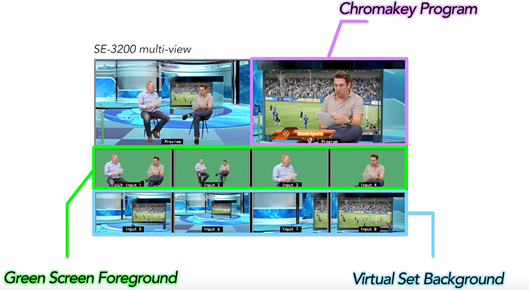

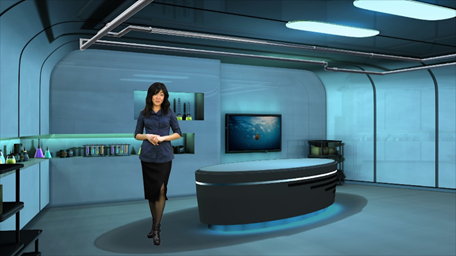

• 4 Chroma-Key Virtual Studio
• 9 stinger transition and 4 user preset

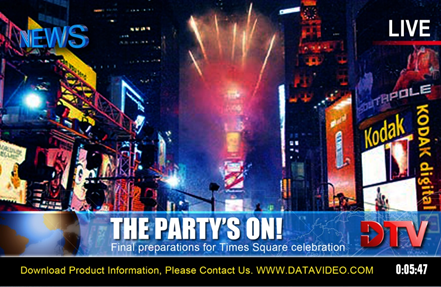

• Built in TC-200 CG interface
• Streaming encoder and recorder
• 12x9 matrix seamless switch

Dimension (LxWxH)

455 x 355 x 134 mm

Weight

17.8 Lbs (8.1 kg), Reinforce Plastic Case

Power

DC 12V, 11A

Operating Temp. Range

0~40 °C

Drive Compatibility

For a list of verified compatible drives, visit the Drive Compatibility Page

What's in the Box

1 x HS-3200 Unit
1 x AD Switch DC 12V with AC Cord
1 x Thank You Card
