SC6D0N4 HDMI 串流直播盒可以藉由HDMI / SDI信號流功能通過H264硬體壓縮將輸入源保存到本地USB
或串流至乙太網（10 / 100/1000Mbps）、3G / 4G / LTE、Wi-Fi（802.11b / g / n)
‧支援乙太網（10 / 100/1000Mbps）、3G / 4G / LTE、Wi-Fi（802.11b / g / n）
‧串流協議支持以下：
RTSP over UDP / TCP / Multicast / HTTP
RTMP ( Publish )
TS over IP
HLS
技術規格
| Max. FPS最大FPS | 300fps@1920×1080p (4 SDI + 1 PGM Channels) |
| Recording Mode 錄製模式 | Hardware Compression |

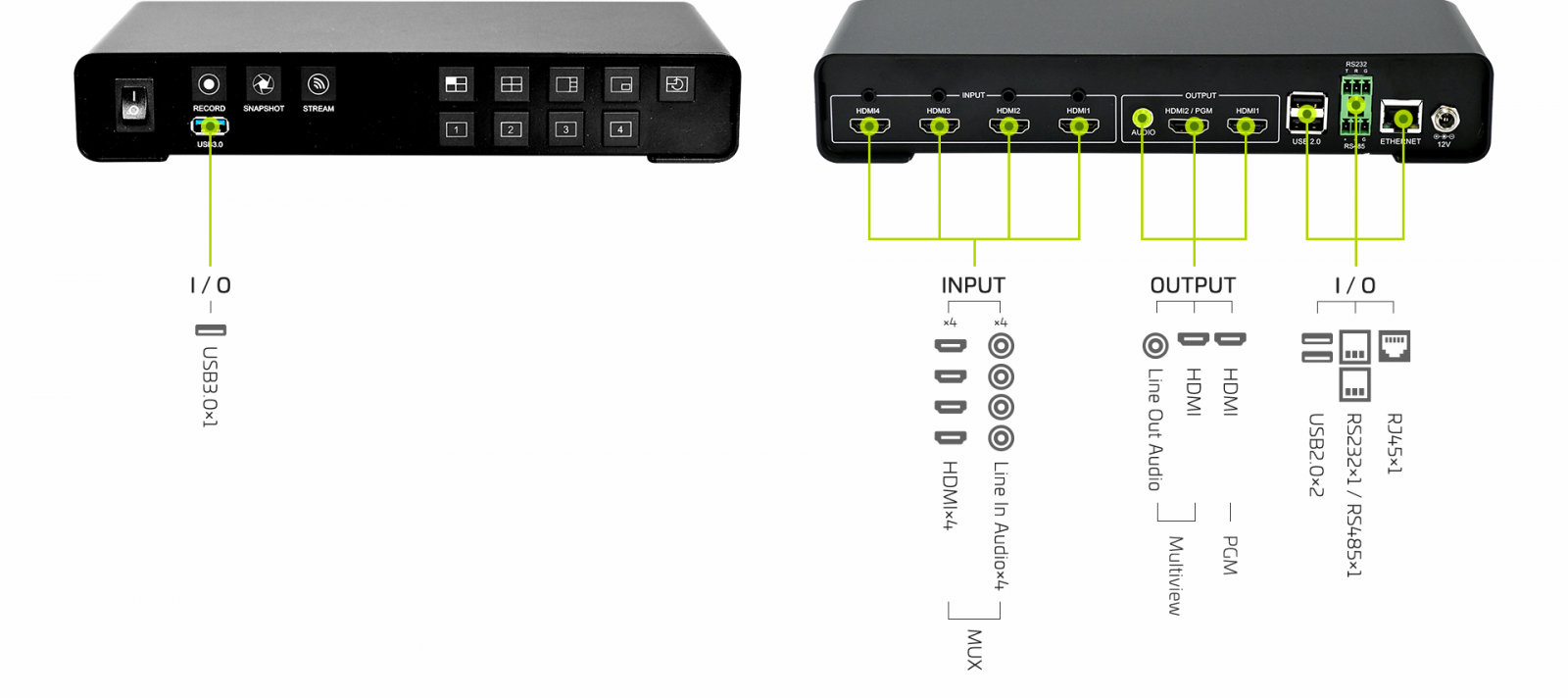

| Input Interfaces 輸入接口 |
Video |
| Output Interfaces 輸出接口 | Video 1×HDMI (Multiview /PGM) 1×SDI (PGM) Audio 1×3.5mm |
| Video Feature 視頻功能 | H.264/AVC , Baseline/Main/High Profile Configurable Bit Rate Up to 10Mbps Supported Resolutions : Input 1920×1080 ( P60 / P50 / P30 / P25 / P24 / i60 / i50 ) 1280×720 ( P60 / P50 ) 1280×1024 ( P60 ) 1280×960 ( P60 ) 1024×768 ( P60 ) 800×600 ( P60 ) 720×480 ( P60 / i60 ) 640×480 ( P60 ) 720×576 ( P50 / i50 ) Output Resize Range from 128×128 to 1920×1080 ( P60 ) |
| Audio Feature 音頻功能 | AAC-LC Configurable Bit Rate Range from 32Kbps to 384Kbps Sample Rate : 48KHz, 16bit |
| Network Feature 網絡功能 |
1×RJ45 for 10/100/1000Mbps Ethernet
DHCP Client
|
| Support Streaming protocol 支持流媒體協議 |
RTSP over UDP / TCP / Multicast / HTTP RTMP ( Publish ) TS over IP HLS |
| Misc. Features 雜項特徵 | Web UI for system configuration Firmware upgradable LED indicator Status with Power Recycle 2×USB2.0 ( For Keyboard and Mouse Usage ) 1×USB3.0 ( For External Storage Usage ) 1×RS232 + 1×RS485 Main Function Switch : Record Snapshot Stream PGM Mode Switch : Full Screen Quadview Picture by Picture Picture in Picture PGM Loop Full Screen Switch : Channel 1 Channel 2 Channel 3 Channel 4 |
| Record Format 記錄格式 | MP4/TS/MOV |
| Power Supply 電源 |
DC input : 12V / 2A |
