SC6D0N4 AIO 串流直播盒可以藉由HDMI / SDI信號流功能通過H264硬體壓縮將輸入源保存到本地USB
或串流至乙太網（10 / 100/1000Mbps）、3G / 4G / LTE、Wi-Fi（802.11b / g / n)
‧支援乙太網（10 / 100/1000Mbps）、3G / 4G / LTE、Wi-Fi（802.11b / g / n）
‧串流協議支持以下：
TS Over UDP ( Unicast & Multicast )
RTSP Over HTTP / TCP / UDP ( RTSP Elementary Stream )
RTMP ( Publish )
HLS
技術規格
| Max. FPS最大FPS | 60/50fps@1920×1080p |
| Recording Mode 錄製模式 | Hardware Compression，Real-Time Mode |

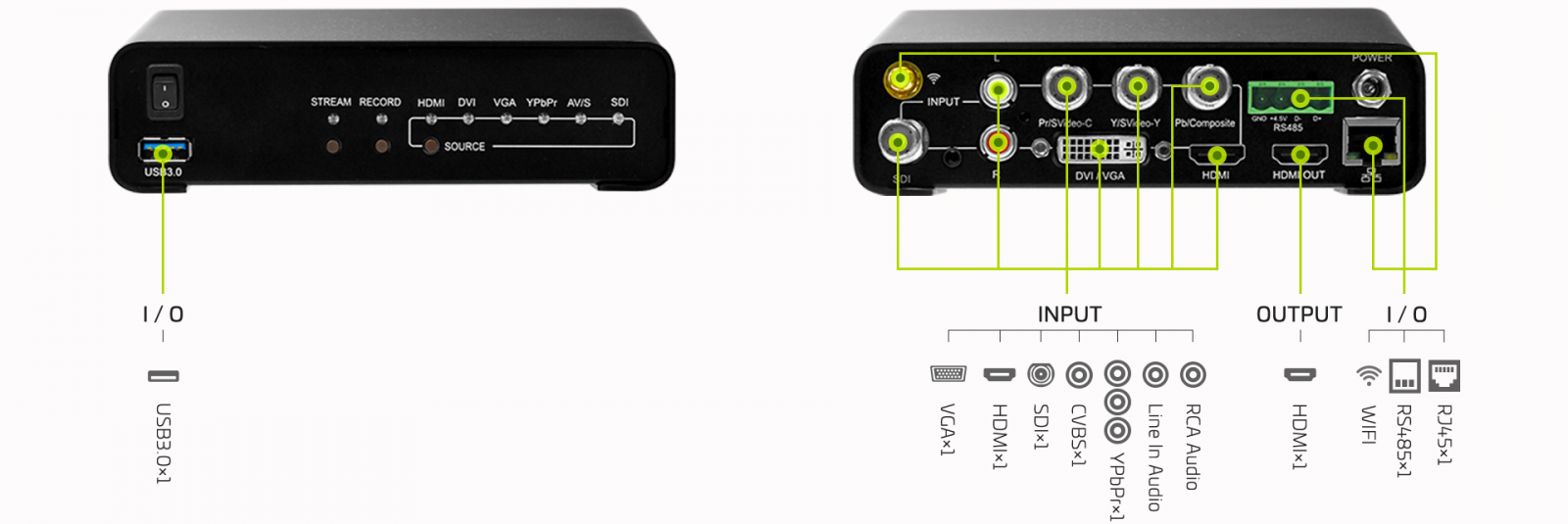

| Input Interfaces 輸入接口 |
Video |
| Output Interfaces 輸出接口 | Video 1×HDMI |
| Video Feature 視頻功能 | H.264 / H.265 / AVC, Baseline / Main / High Profile Configurable Bit Rate Up to 32Mbps ( for each stream ) Supported Resolutions: Input 1920×1080 ( P60 / P50 / P30 / P25 / P24 / i60 / i50 ) 1280×720 ( P60 / P50 ), 1280×1024 ( P60 ), 1280×960 ( P60 ) 1024×768 ( P60 ), 800×600 ( P60 ), 720×480 ( P60 / i60 ) 640×480 ( P60 ), 720×576 ( P50 / i50 ) Output Resize Range from 320×240 to 1920×1080 ( P60 ) *Output Include Down Scaling. |
| Audio Feature 音頻功能 | AAC-LC Configurable Bit Rate Range from 32Kbps to 384Kbps Sample Rate : 48KHz, 16bit |
| Network Feature 網絡功能 |
1×RJ45 for 10 / 100 / 1000Mbps Ethernet
DHCP Client Wifi : ( Option ) 802.11b / G / N Support 150Mbps PHY Rate |
| Support Streaming protocol 支持流媒體協議 |
TS Over UDP ( Unicast & Multicast ) RTSP Over HTTP / TCP / UDP ( RTSP Elementary Stream ) RTMP ( Publish ) HLS |
| Misc. Features 雜項特徵 | Dynamic Parameter Setting RS485 1×USB 3.0 Host for USB Storage Web UI for System Configuration Firmware Upgradable LED Indicator PGM mode switch Full screen Picture by picture( Selectable CH1 : SDI, CH2: YPbPr / CVBS / S - Video / DVI - I / HDMI ) Picture in picture( Selectable CH1 : SDI, CH2: YPbPr / CVBS / S - Video / DVI - I / HDMI ) |
| Record Format 記錄格式 | MP4/TS/MOV |
| Power Supply 電源 |
DC input : 12V / 2A |
