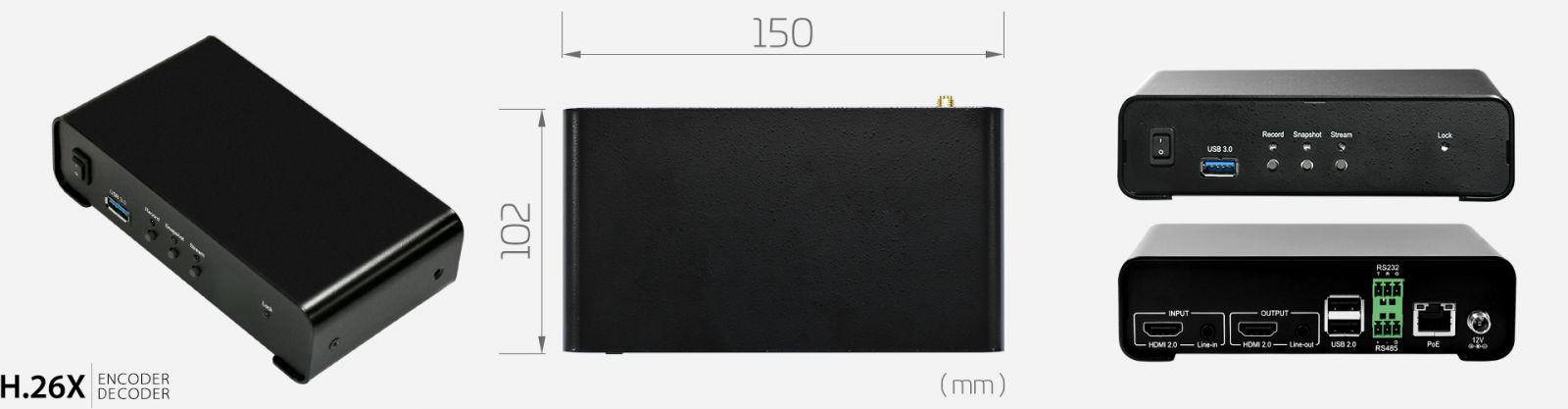

SC6D0N4 HDMI2.0串流直播盒可以藉由HDMI / SDI信號流功能通過H264硬體壓縮將輸入源保存到本地USB
或串流至乙太網(10 / 100/1000Mbps)、3G / 4G / LTE、Wi-Fi(802.11b / g / n)
‧支援乙太網(10 / 100/1000Mbps)、3G / 4G / LTE、Wi-Fi(802.11b / g / n)
‧串流協議支持以下:NDI Support
RTSP over UDP/TCP/Multicast/HTTP
RTMP public ( web portal )
TS over IP
HLS
optional by customer request
技術規格
Max. FPS最大FPS | 60/50fps@3840×2160p |
Recording Mode 錄製模式 | Hardware Compression |

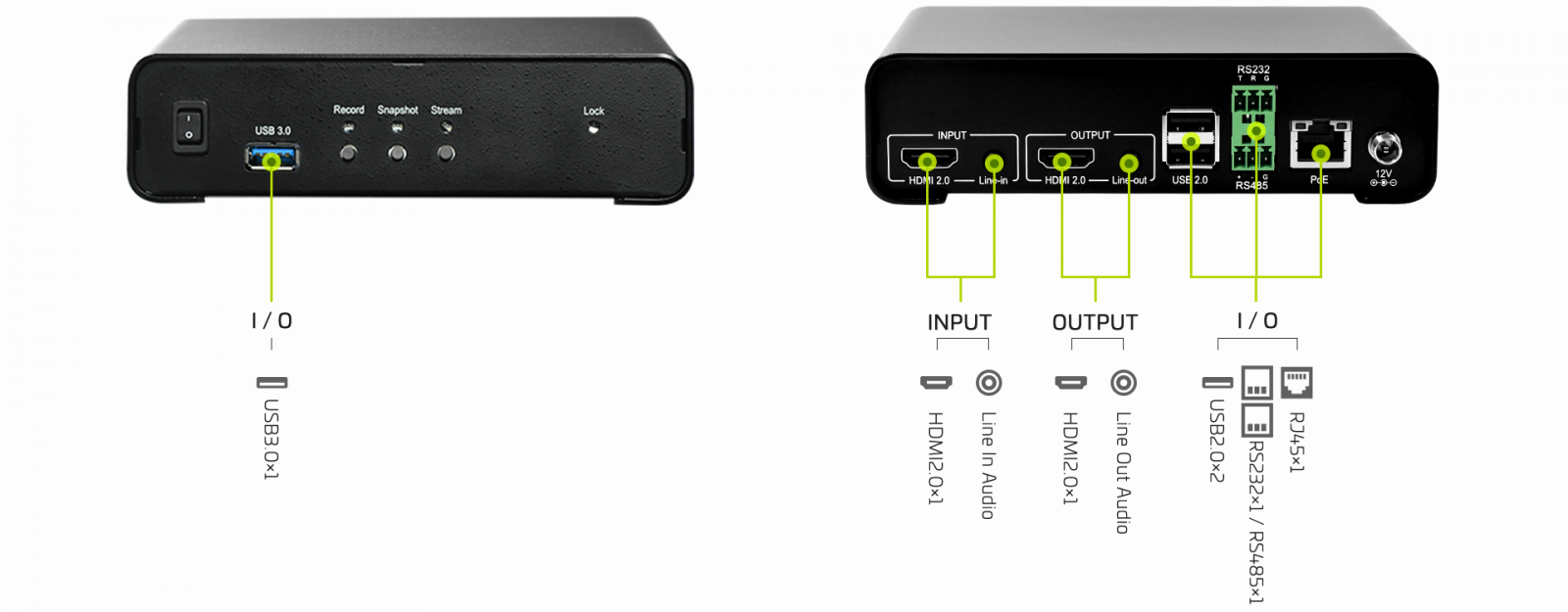

Input Interfaces 輸入接口 |
Video |
Output Interfaces 輸出接口 | Video 1×HDMI2.0 Audio 1×3.5mm Stereo Analog Audio |
Video Feature 視頻功能 | H.265( HEVC ) / H.264 / AVC, Baseline / Main / High Profile Configurable Bit Rate Up to 64Mbps Supported Input / Output Resolutions : 3840×2160p@60/50fps 3840×2160p@30/25/24fps 1920×1080p@60/50fps 1920×1080p@30/25/24fps 1280×720p@60/50fps 1280×1024p@60fps 1280×960p@60fps 1024×768p@60fps 800×600p@60fps 640×480p@60fps 720×480p@60fps 720×576p@50fps |
Audio Feature 音頻功能 | AAC-LC Configurable Bit Rate Range from 32Kbps to 384Kbps Sample Rate : 48KHz, 16bit, Stereo |
Network Feature 網絡功能 | 1×RJ45 for 10/100/1000Mbps Ethernet DHCP client Wifi : 802.11b/g/n optional by customer request |
Support Streaming protocol 支持流媒體協議 |
NDI Support RTSP over UDP/TCP/Multicast/HTTP RTMP public ( web portal ) TS over IP HLS optional by customer request |
Misc. Features 雜項特徵 | Web UI for system configuration Firmware upgradable LED indicator Status with Power Recycle 1×USB3.0 ( For external storage usage ) 2×USB2.0 1×RS232 + 1×RS485 |
Record Format 記錄格式 | MP4/TS/MOV |
Power Supply 電源 |
DC Input : 12V / 2A |
