SC6C0N1 M 4G串流直播盒可以藉由HDMI / SDI信號流功能通過H264硬體壓縮將輸入源保存到本地USB
或串流至乙太網(10 / 100Mbps)、3G / 4G / LTE、Wi-Fi(802.11b / g / n)
‧支援乙太網(10 / 100Mbps)、3G / 4G / LTE、Wi-Fi(802.11b / g / n)
‧串流協議支持以下:
TS Over TCP/UDP/HTTP ( Unicast & Multicast )
RTSP Over HTTP/TCP/UDP ( RTSP Elementary Stream )
RTMP ( Publish )
HLS

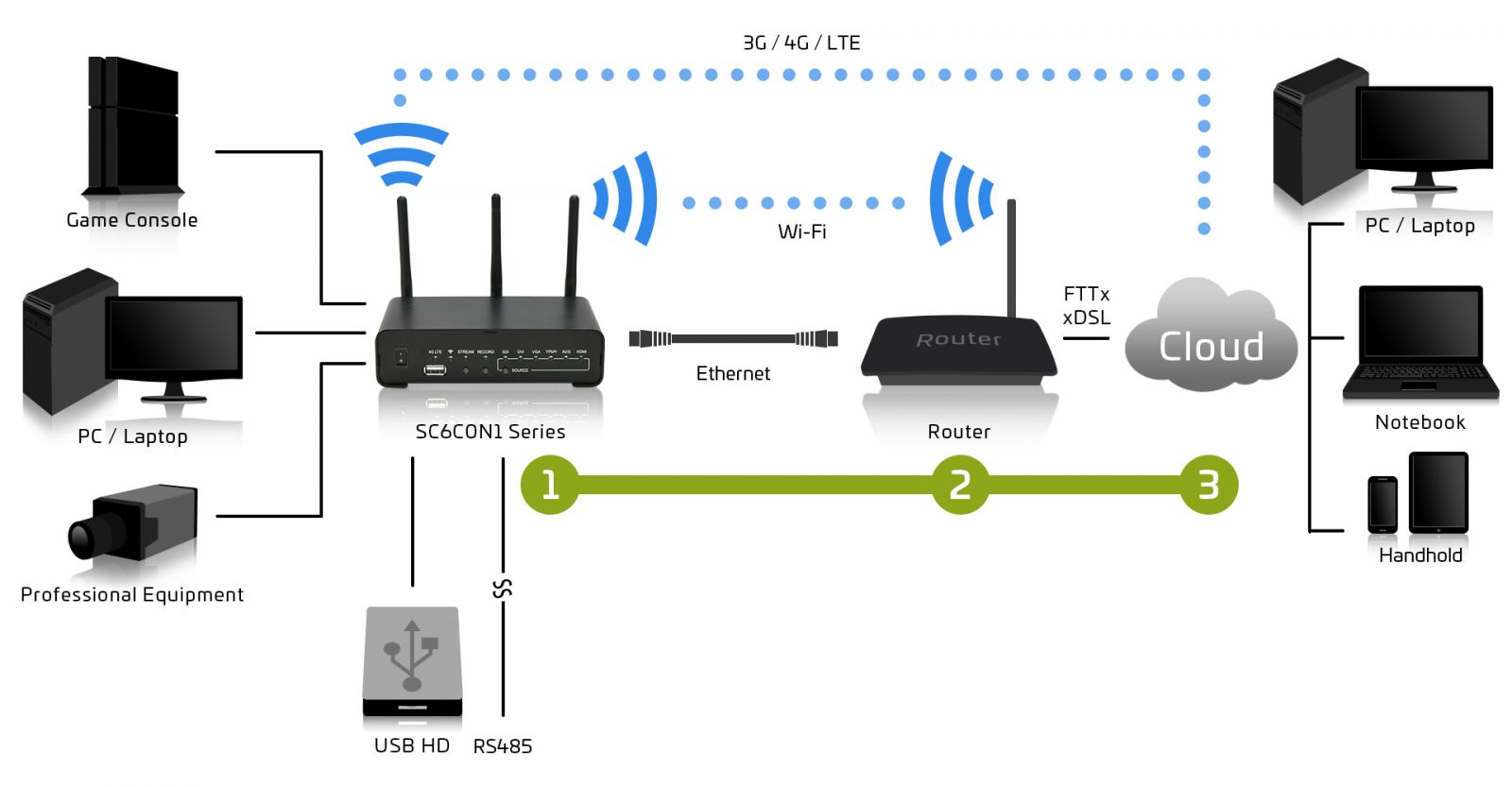

產品應用:
技術規格
Max. FPS最大FPS | 60/50fps@1920×1080p |
Recording Mode 錄製模式 | Hardware Compression, Real-Time Mode |
4G Support 4G支持 | LTE LTE FDD : Max 150Mbps ( DL ) / Max 50Mbps ( UL ) LTE TDD : Max 130Mbps ( DL ) / Max 35Mbps ( UL ) |

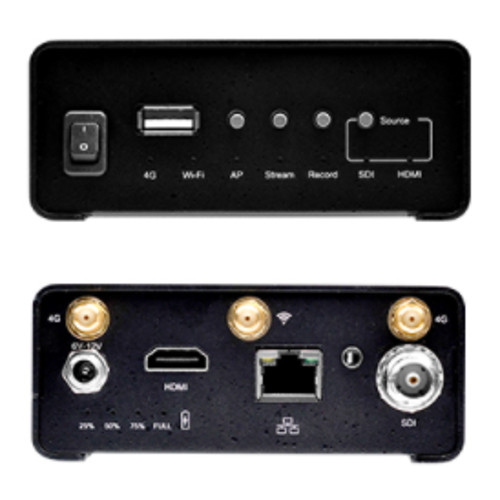

Input Interfaces 輸入接口 | Video 1×HDMI 1×SDI Audio 1×3.5mm Stereo Analog Audio SDI/HDMI Embedded Audio |
Video Feature 視頻功能 | H.264/AVC , Baseline/Main/High Profile Configurable Bit Rate Up to 10Mbps Supported Resolutions : Input 1920×1080 ( P60/P50/P30/P25/P24/i60/i50 ) 1280×720 ( P60/P50 ), 1280×1024 ( P60 ), 1280×960 ( P60 ) 1024×768 ( P60 ), 800×600 ( P60 ), 720×480 ( P60/i60 ) 640×480 ( P60 ), 720×576 ( P50/i50 ) Output Resize Range from 128×128 to 1920×1080 ( P60 ) *Output Include Down Scaling. |
Audio Feature 音頻功能 | AAC-LC Configurable Bit Rate Range from 32Kbps to 384Kbps Sample Rate : 48KHz, 16bit |
Network Feature 網絡功能 |
1×RJ45 for 10/100Mbps Ethernet
DHCP Client
Wifi
802.11b/g/n
Support 150Mbps PHY Rate
Support Streaming protocol
TS Over TCP/UDP/HTTP ( Unicast & Multicast )
RTSP Over HTTP/TCP/UDP ( RTSP Elementary Stream )
RTMP ( Publish )
HLS
|
Support Streaming protocol 支持流媒體協議 |
TS Over TCP/UDP/HTTP ( Unicast & Multicast ) RTSP Over HTTP/TCP/UDP ( RTSP Elementary Stream ) RTMP ( Publish ) HLS |
Misc. Features 雜項特徵 | Dynamic Parameter Setting 1×USB 2.0 Host for USB Storage Web UI for System Configuration Firmware Upgradable LED Indicator Status With Power Recycle 1×Sim Card Slot ( For 3G/4G/LTE Usage ) |
Record Format 記錄格式 | MP4 |
Power Supply 電源 |

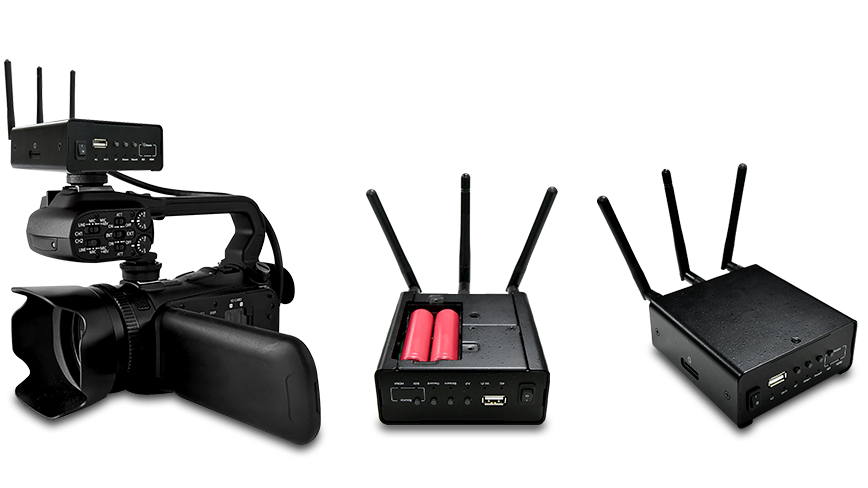

DC 12V ( With DC Adapter )2 × 18650 Battery Slot ( 3.7V / 2600mAh ) |
